Flat Metal Roof Leaking Issues Explained

Learn to Identify and Resolve Common Flat Roof Issues for Central Coast Properties

Although flat roofs are not the most prevalent roofing option in Australia, they are gaining traction among both residential and commercial buildings. These roofs are frequently installed on patios, carports, walkways, and other areas that require low-pitch roofing solutions. When the incline is minimal, flat roofs may also be referred to as “skillion roofs.”

Flat roofs offer several benefits, yet they also present unique challenges that homeowners should be aware of. Recognising the common issues associated with flat roofing systems and adopting strategies to mitigate them is essential, particularly in the Central Coast. Here, the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing problems, making it imperative to stay informed and proactive.

What Are the Main Reasons Behind the Increasing Popularity of Flat Roofs Among Homeowners?

The demand for flat roofs in both residential and commercial constructions is growing for several compelling reasons:

• They are quicker and simpler to install, leading to faster project completion times
• They provide easier maintenance access, making routine inspections and repairs less cumbersome
• They offer ideal surfaces for solar panel installations, thereby enhancing energy efficiency

The primary concern with flat roofs is effectively managing water drainage. Water poses a significant threat to your roof. When planning for a new roof installation or making upgrades to an existing one, it is essential to consider various factors, particularly rainfall, which can vary greatly across different regions of Australia.

What Are the Major Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that allow rainwater to flow off quickly into gutters, flat roofs feature a limited slope. This design can lead to water accumulation that remains for extended periods. If water is not effectively directed away from the roof, it may cause:

• Surface staining and degradation of roofing materials
• Structural weakening of roofing components over time
• Build-up of mould and mildew, which poses health risks
• Leaks that can infiltrate the building's interior

Addressing these issues necessitates effective roof plumbing and thoughtful design that accommodates the distinctive challenges posed by flat roofs.

How to Design Flat Roofs for Optimal Drainage Efficiency

Before installation, a professional roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and common weather patterns
• Overall roof area and specific dimensions
• Gutter configurations and effective drainage outlets
• Downpipe dimensions and specifications
• Overflow prevention options to mitigate excess water
• Considerations for roof pitch to enhance drainage

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with slopes less than this can jeopardise waterproofing efforts and may even invalidate product warranties, leading to costly repairs down the line.

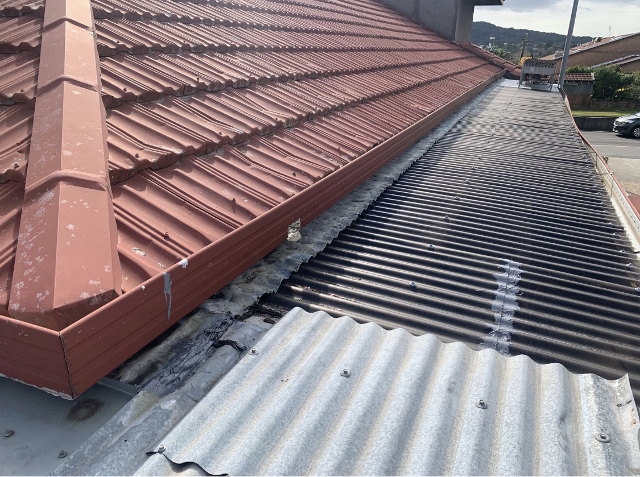

Standard corrugated roofing sheets, while suitable for pitched roofs, are typically not ideal for very low-pitch applications. For flat roofs, specialised roofing profiles designed for efficient water shedding are highly recommended to ensure long-term performance and reliability.

Exploring the Top Metal Roofing Profiles for Low-Pitch and Flat Roof Installations

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance watertightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Selecting the correct roofing profile based on your roof pitch and local rainfall conditions is essential to ensure the long-lasting performance and reliability of your roofing system.

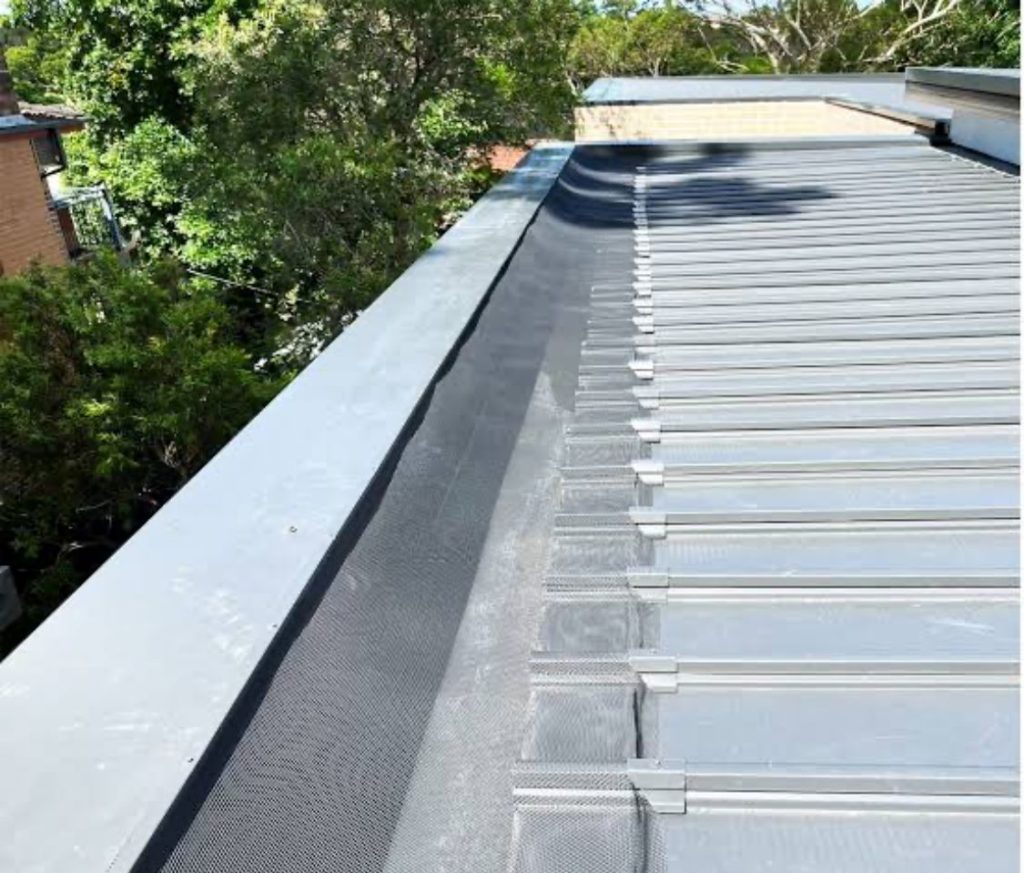

How to Effectively Manage Box Gutters and Drainage for Flat Roofs

On flat roofs, box gutters are commonly used to connect roof panels to drainage outlets. Since box gutters are situated below the roof plane, they necessitate meticulous detailing and installation to prevent blockages and water back-up issues.

Common challenges related to box gutters include:

• Accumulation of debris from nearby trees and foliage
• Improper fall or slope hindering efficient water flow
• Overflowing back into the roof structure, leading to leaks
• Blocked downpipes that inhibit effective drainage

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Considerations Should Be Made When Choosing Guttering for Your Flat Roof?

Standard gutters often do not adequately accommodate the water flow demands of flat roofs. It is frequently necessary to install guttering designed to handle larger volumes of water. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during intense rainfall
• Effectively sweep debris away with high flow capabilities
• Offer easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, perfect for flat metal roofs while also providing an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, enabling faster drainage. This design effectively sweeps away silt and sludge build-ups with every rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be adequately sized based on local rainfall patterns and linked to appropriately sized downpipes (for example, 100mm × 75mm) capable of handling substantial water volumes. In areas abundant with trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Flashings Are Essential for Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is vital, as water may accumulate around these joints if they are not adequately sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra attention is required at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes extra precautions during installation and uses high-quality waterproof sealants to prevent water from pooling in these vulnerable areas.

Why Is Routine Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require regular inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure clear drainage
• Checking downpipes for signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may pool
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can prevent the need for more extensive repairs in the future, thereby extending the lifespan of your roofing system.

Discover the Advantages of Expertly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising functionality
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, improving the overall functionality and appearance of the building.

How to Ensure You Receive the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can offer both functionality and durable longevity in the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the appropriate roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer on the horizon, now is the perfect time to address any roofing issues and prevent more significant problems from arising in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Encounter More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an adequate slope, water may pool or leak into the building structure. However, when constructed with the correct pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Ideal Roof Pitch for Flat or Low-Slope Roofs?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles like Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is It Feasible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface streamlines the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters located below the roof line, often situated between roof sections or along parapet walls. They are commonly utilised on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally need higher-capacity gutters and larger downpipes to ensure effective water drainage. Half-round gutters and 100x75mm downpipes are commonly employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
